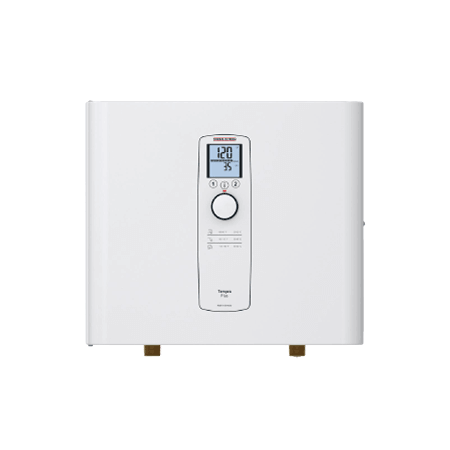

Stiebel Eltron Tempra 20 Plus Tankless Water Heater
Dynamic Flow Control Technology
exclusive to Tempra Plus tankless water heaters!
Let us help you evaluate if tankless is right for you or help you select the best model for your application. Call us now...
See an internal view of the Stiebel Eltron Tempra 20 Plus tankless water heater - learn how it works and what makes it superior to the competition.
(Click the picture)
Stiebel Eltron Tempra Plus Series Brochure
Electrical Requirements & Installation Information
Stiebel Eltron Tempra 20 Plus
Our Reg. Price: $
Sale Price: US$673.00
You save: $246.00
Found a Lower Price?
Request a Price Beat
Limited Quantity of Factory Refurbished units available.
Save an additional $94!
- more info -
- Digital Display
- Flow Control Technology
- 19.2 kW's of Power
- Thermostatically Controlled
- Requires 125 Amp Service
Like all Tempra Plus Series tankless water heaters, the Tempra 20 Plus features true microprocessor-controlled temperature regulation as well as a convenient digital temperature display and dial selector which allows you to set the desired output water temperature at any level between 86 and 140F (30 and 60C). It is one of the only tankless water heaters on the market that features a true thermostatic temperature control and full power-modulation based on both the incoming water temperature and the water flow rate. The Tempra 20 Plus will automatically adjust its power output to accommodate changes in the incoming water temperature and flow rate so it can precisely maintain the desired output temperature.
The Tempra 20 Plus also features Stiebel Eltron's exclusive dynamic Advanced Flow Control technology. This technology automatically adjusts the flow of water when the unit's sensors detect that the flow demand is exceeding the heater's capacity. This feature is particularly useful in cold climates and other applications where the electrical service size does not permit the installation of a larger model and it may be desirable to handle occasional high flow demands. It is also desirable where high output temperatures are required for temperature critical applications (commercial dishwashers, etc.) and where flow rates are not always predictable.
Simply stated, the Stiebel Eltron Tempra Plus Series electric tankless water heaters feature the most precise temperature control of any tankless water heater on the market today!
|Maximum Flow Rate in Gallons Per Minute at 105°F Output temp|
|Incoming Water Temp:||Flow Rate (GPM)|
Please review the Stiebel Eltron Tempra Brochure
for temp rise data at 208v input.
|Stiebel Eltron Tempra 20 Plus Specifications|
|Yes, digital temperature control and full power modulation based on flow rate and incoming water temperature.|
|Yes, dynamic flow control technology automatically adjusts the flow of water when the unit's sensors detect that the flow demand is exceeding the heater's capacity. This feature is exclusive to Stiebel Eltron Tempra Plus Series tankless water heaters!|
|Power (KW):||19.2 KW @ 240v / 14.4 KW @ 208v|
|Voltage:||208 - 240 volts / single phase / 50 - 60 Hz|
|Max. Amps:||80 AMPS @ 240v / 70 AMPS @ 208v|
|Breakers Required:*||2 x 40 AMP breakers (depends on local codes)|
|Wiring:*||Minimum 2 x #8 AWG Copper (depends on local codes)|
|Dimensions:||16.6 x 14.5 x 4.6" (42 x 36.8 x 11.7 cm)|
|Weight:||15.4 lbs (7.3 KG)|
|Pipe Fittings:||3/4" NPT|
|Activation Flow Rate:||0.50 GPM / 1.9 LPM|
|Max. Water Pressure:||150 psi (tested to 300 psi)|
|Max. Output Temperature:||140F (60C)|
|Max. Input Temperature:||131F (55C)|
|Warranty:||Manufacturer's 3 Year Warranty|
|Safety:||ETL Listed (US & Canada) - meets all applicable standards, including ANSI/UL 499 (USA) and CSA-E335-1/3E-94 (Canada)|
|Protection:||microprocessor-based thermostatic temperature control (flow rate and temperature modulating) with thermal hi-limit cut-out switch monitoring each heating module|
* Breaker size and wire gauge must meet all applicable local, state, provincial, and national electrical codes for your area - these are only guidelines that will apply to most installations. Some codes require use of electrical sub-panel for installation, especially when heater is not mounted within line-of-sight of the main electrical panel. Wiring should be sized to maintain a voltage drop of less than 3% under load. Please consult your electrician for more details.
Please note: A minimum 125 AMP household electrical service is highly recommended and will likely be required to install this model. If you are unsure of your electrical capacity in your home, please consult your electrician or contact us for assistance before ordering.
Stiebel Eltron Tempra 20 Plus Reviews
Waters Hot and Lots of It
I turn on the water and I get hot water. There's little else to say. Completely satisfied!
- Richard L
All Stiebel Eltron Tempra and Tempra Plus tankless water heaters are ETL Listed in the USA and Canada, ensuring they conform to all applicable safety standards.
All Stiebel Eltron Tankless Water Heaters are tested and certified by WQA against NSF/ANSI 372 for "lead free" compliance.
Comprehensive 7 year manufacturer's warranty against leakage / 3 year against defects in workmanship & materials. See warranty for details
