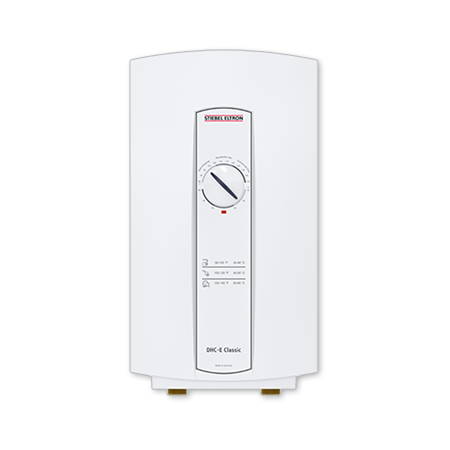

Stiebel Eltron DHC-E 8/10 Point-of-Use
Tankless Water Heater
Let us help you evaluate if tankless is right for you or help you select the best model for your application. Call us now...
DHC-E 8/10 Advantages:
• save space
• save energy
• reduce water waste
• simple installation
• very economical
• legendary Stiebel quality
Stiebel Eltron DHC-E 8/10 Tankless Brochure
Adobe PDF Format
Stiebel Eltron DHC-E 8/10 Tankless Installation Guide
Adobe PDF Format
Stiebel Eltron's DHC-E 8/10
tankless water heater is independently tested to comply with US and Canadian safety standards
Stiebel Eltron Tankless Water Heaters are tested and certified by WQA against NSF/ANSI 372 for "lead free" compliance.
Stiebel Eltron is
Quality you can count on!
Manufactured in Germany
Be the first to write a review.
Stiebel Eltron DHC-E 8/10
Our Price: US$289.00
Found a Lower Price?
Request a Price Beat
- 7.2 or 9.6 kW's of Power
- Thermostatically Controlled
- Compact Size
The Stiebel Eltron DHC-E series tankless water heaters are the most advanced point-of-use tankless water heaters on the market today. The DHC-E 8/10 and DHC-E 12 both feature the same industry-leading thermostatic temperature control and flow and temperature based power modulation technology found in Stiebel Eltron's flagship Tempra whole house heaters. Set the desired temperature on the front of the unit and enjoy water temperatures between 86° (30°C), and 140° (60°C). Change the desired temperature at anytime. Advanced microprocessor technology ensures that the water temperature never deviates from the set point.
By producing hot water on demand only as it is being used, the DHC-E 8/10 is extremely energy efficient. A sophisticated water flow sensor recognizes when hot water is being used and when it has been turned off, so the unit will activate and deactivate automatically so it only runs when you are actually using water. This eliminates standby thermal heat losses associated with traditional tank type water heaters. Accordingly, you can expect to see a significant cost reduction over the operating cost of a conventional water heater.
|Maximum Flow Rate in Gallons Per Minute at 105F Output Temp.|
|Incoming Water Temp:||Flow Rate (GPM)|
|40F||0.75 / 1.00 GPM|
|45F||0.82 / 1.09 GPM|
|50F||0.89 / 1.19 GPM|
|55F||0.98 / 1.31 GPM|
|60F||1.09 / 1.45 GPM|
|65F||1.22 / 1.63 GPM|
|70F||1.40 / 1.87 GPM|
|75F||1.63 / 2.18 GPM|
the Brochure for temp rise data at 208v input.
The Stiebel Eltron DHC-E 8/10 combines the DHC-E 8 and DHC-E 10 into a single unit. Changing a jumper during installation allows this unit to act as either an 8 KW or 10 KW unit.
The Stiebel Eltron DHC-E series tankless water heaters are the most technologically advanced point-of-use tankless water heaters available today. The DHC-E 8, DHC-E 8/10 and DHC-E 12 feature the industry-leading thermostatic temperature control as well as flow and temperature based power modulation technology found in Stiebel Eltron's flagship Tempra whole house heaters. Simply set your desired temperature between 86° (30°C), and 140° (60°C) and enjoy water at the temperature you requested. Change your desired temperature at anytime with ease. Advanced microprocessor technology ensures that the water temperature never deviates from your desired temperature.
The DHC-E 8/10 is extremely energy efficient, as it produces hot water on demand only as it is required. A sophisticated water flow sensor recognizes when hot water is turned on and when it has been turned off, so the unit will activate and deactivate automatically. This ensures it will only run when you are actually requesting hot water. You can expect to see a significant cost reduction over the operating cost of a conventional water heater, as this eliminates standby thermal heat losses associated with traditional tank type water heaters.
|Stiebel Eltron DHC-E 8/10 Tankless Water Heater Specifications|
|Thermostatically Controlled?||Yes, temperature control and full power modulation based on flow rate and incoming water temperature.|
|KW||9.6 or 7.2 KW @ 240v / 7.2 or 5.4 KW @ 208v|
|Voltage:||208 - 240 volts / single phase / 50 - 60 Hz|
|Max. Amps:||40 or 30 AMPS @ 240v / 35 or 26 AMPS @ 208v|
|Breakers Required:*||1 x 40 AMP breaker @ 240V
or 1 x 35 amp breaker at 208V (depends on local codes)
|Wiring:*||Minimum #8 AWG Copper (depends on local codes)|
|Dimensions:||14.25 x 7.9 x 4.1" (36 x 20 x 11 cm)|
|Weight:||5.9 lbs (2.7 KG)|
|Pipe Fittings:||1/2" NPT|
|Activation Flow Rate:||0.26 GPM / 1.0 LPM|
|Max. Water Pressure:||150 psi|
|Warranty:||Manufacturer's 3 Year Warranty|
|Safety:||ETL Listed (US / Canada)|
|Protection:||microprocessor-based thermostatic temperature control (flow rate and temperature modulating) with thermal hi-limit cut-out switch|
* Breaker size and wire gauge must meet all applicable local, state, provincial, and national electrical codes for your area - these are only guidelines that will apply to most installations. Please consult your electrician for more details.
