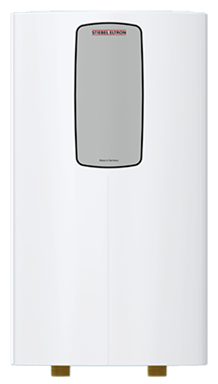

Stiebel Eltron DHC Trend Series
Electric Point-of-Use Tankless Water Heaters
Let us help you evaluate if tankless is right for you or help you select the best model for your application. Call us now...
Stiebel Eltron
DHC Trend Series Advantages:
• save space
• save energy
• direct coil technology
• reduce water waste
• simple installation
• very economical
• legendary Stiebel quality
Stiebel Eltron DHC Trend Tankless Brochure
Adobe PDF Format
Stiebel Eltron DHC Trend Tankless Installation Guide
Adobe PDF Format
Stiebel Eltron DHC Trend Series
tankless water heaters are independently tested to comply with US and Canadian safety standards
Stiebel Eltron Tankless Water Heaters are tested and certified by WQA against NSF/ANSI 372 for "lead free" compliance.
Stiebel Eltron is
Quality you can count on!
Manufactured in Germany
The Stiebel Eltron DHC Trend series tankless water heaters are some of the most technologically advanced point-of-use tankless water heaters available today. The DHC Trend Series features Stiebel Eltron's direct coil heating technology, which has proven worldwide to have an exceptionally low failure rate. Direct Coil technology is self-cleaning for superior hard water resistance, lower latent heat retention, and a faster heat-up time.
The DHC Trend models are designed for a single sink application and have no screen. Maximum temperature output can be set internally but they should be sized by choosing the correct power output for the particular flow rate and temparure rise needed for an installation.
The DHC Trend Series are extremely energy efficient as they produce hot water on demand, only as it is required. A sophisticated water flow sensor recognizes when hot water is turned on and when it has been turned off, so the unit will activate and deactivate automatically. This ensures it will only run when you are actually requesting hot water. You can expect to see a significant cost reduction over the operating cost of a conventional water heater, as this eliminates standby thermal heat losses associated with traditional tank type water heaters.
| Maximum Flow Rate in Gallons Per Minute at 105F Output Temperature | ||||
|---|---|---|---|---|
| Incoming Water Temp |
DHC 3/3.5-1 Trend | DHC 4/6-2 Trend | DHC 8/10-2 Trend | DHC 12/15-2 Trend |
| 40F | 0.31 / 0.36 GPM | 0.4 / 0.63 GPM | 0.75 / 1.00 GPM | 1.3 / 1.5 GPM |
| 45F | 0.34 / 0.4 GPM | 0.43 / 0.68 GPM | 0.82 / 1.09 GPM | 1.4 / 1.6 GPM |
| 50F | 0.37 / 0.43 GPM | 0.47 / 0.74 GPM | 0.89 / 1.19 GPM | 1.5 / 1.8 GPM |
| 55F | 0.41 / 0.48 GPM | 0.52 / 0.82 GPM | 0.98 / 1.31 GPM | 1.6 / 2.0 GPM |
| 60F | 0.45 / 0.53 GPM | 0.65 / 0.91 GPM | 1.09 / 1.45 GPM | 1.8 / 2.2 GPM |
| 65F | 0.51 / 0.6 GPM | 0.65 / 1.02 GPM | 1.22 / 1.63 GPM | 2.0 / 2.4 GPM |
| 70F | 0.58 / 0.68 GPM | 0.74 / 1.17 GPM | 1.40 / 1.87 GPM | 2.3 / 2.8 GPM |
| 75F | 0.68 / 0.79 GPM | 0.86 / 1.36 GPM | 1.63 / 2.18 GPM | 2.7 / 3.3 GPM |
the Brochure for temp rise data at 208v input.
DHC Trend Series electric tankless water heaters incorporate Stiebel Eltron's Direct Coil™ heating system. Stiebel Eltron's most advanced technology, their Direct Coil™ has proven worldwide to be exceptionally low-failure with outstanding added benefits.
The robust and trouble-free Direct Coil™ heating system is self-cleaning for superior limescale resistance, and includes the added benefits of faster heat-up time, lower latent heat retention, and more.
* Breaker size and wire gauge must meet all applicable local, state, provincial, and national electrical codes for your area - these are only guidelines that will apply to most installations. Please consult your electrician for more details.
| Stiebel Eltron DHC Trend Series Tankless Water Heater Models & Specifications | ||||
|---|---|---|---|---|
| Stiebel Eltron DHC 3/3.5-1 Trend |
Stiebel Eltron DHC 4/6-2 Trend |
Stiebel Eltron DHC 8/10-2 Trend |
Stiebel Eltron DHC 12/15-2 Trend |
|
| KW | 3.5 or 3.0 KW @ 120v | 6 or 3.8 KW @ 240v / 4.5 or 2.9 KW @ 208v | 9.6 or 7.2 KW @ 240v / 7.2 or 5.4 KW @ 208v | 14.4 or 12 KW @ 240v / 10.8 or 9 KW @ 208v |
| Voltage: | 120 volts / single phase / 50 - 60 Hz | 208 - 240 volts / single phase / 50 - 60 Hz | ||
| Max. Amps: | 29.2 or 25 AMPS @ 120v | 25 or 15.8 AMPS @ 240v / 21.7 or 13.9 AMPS @ 208v | 40 or 34.6 AMPS @ 240v / 30 or 26 AMPS @ 208v | 60 or 52 AMPS @ 240v / 50 or 43.3 AMPS @ 208v |
| Breakers Required:* | 1 x 30 AMP breaker @ 120V (depends on local codes) |
1 x 25 AMP breaker @ 240V or 1 x 25 amp breaker at 208V (depends on local codes) |
1 x 40 AMP breaker @ 240V or 1 x 35 amp breaker at 208V (depends on local codes) |
1 x 60 AMP breaker @ 240V or 1 x 60 amp breaker at 208V (depends on local codes) |
| Wiring:* | Minimum #10 AWG Copper (depends on local codes) |
Minimum #10 AWG Copper (depends on local codes) |
Minimum #8 AWG Copper (depends on local codes) |
Minimum #6 AWG Copper (depends on local codes) |
| Dimensions: | 14.33 x 8 x 4.31" (36 x 20 x 11 cm) | |||
| Weight: | 5.5 lbs (2.5 KG) | |||
| Pipe Fittings: | 1/2" NPT | |||
| Energy Efficiency: | 99%+ | |||
| Activation Flow Rate: | 0.264 GPM / 1.0 LPM | |||
| Max. Water Pressure: | 145 psi | |||
| Warranty: | Manufacturer's 3 Year Warranty | |||
| Safety: | ETL Listed (US / Canada) | |||
| Protection: | microprocessor-based thermostatic temperature control (flow rate and temperature modulating) with thermal hi-limit cut-out switch | |||
| Price Lowest Price Guaranteed! |
US$239.00 + Free Shipping |
US$239.00 + Free Shipping |
US$239.00 + Free Shipping |
US$239.00 + Free Shipping |
 DHC 3/3.5-1 Trend |
DHC 4/6-2 Trend |
DHC 8/10-2 Trend |
DHC 12/15-2 Trend |
|
