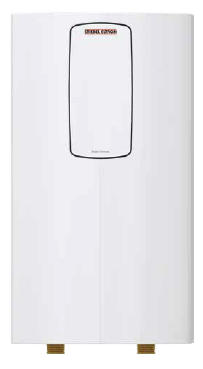

Stiebel Eltron DHC Series
Point-of-Use Tankless Water Heater


Stiebel Eltron
DHC Series Advantages:

• save space
• save energy
• reduce water waste
• simple installation
• very economical
• legendary Stiebel quality



Download Stiebel Eltron DHC Series Tankless Brochure

Stiebel Eltron DHC Series Tankless Brochure

Adobe PDF Format



Download Stiebel Eltron DHC Series Tankless Water Heater Installation Manual

Stiebel Eltron DHC Series Tankless Installation Guide

Adobe PDF Format



ELT Listed - USA/Canada

the Stiebel Eltron DHC Series
tankless water heaters are independently tested to comply with US and Canadian safety standards



WQA Certified

Stiebel Eltron Tankless Water Heaters are tested and certified by WQA against NSF/ANSI 372 for "lead free" compliance.


Stiebel Eltron is
Stiebel Eltron is ISO-9001 Certified
Quality you can count on!
Manufactured in Germany

The Stiebel Eltron DHC series tankless water heaters are well built, economical, and ultra-compact point-of-use tankless water heaters designed for basic point of use applications. Basic point of use applications include many bathroom sinks, kitchens, commercial washrooms, emergency eyewash stations, etc. The DHC series is designed for applications with a relatively constant flow rate. If the flow rate will potentially fluctuate in your application due to varying water demands, incoming water temperatures, or water pressures, we recommend that you consider a DHC-E Series tankless water heater with thermostatic control and flow-based power modulation technology.

The Stiebel Eltron DHC Series can conveniently fit directly under a sink or in an adjacent cupboard or closet, so they deliver hot water to the application almost instantly. By locating the heater right next to the faucet, you can also virtually eliminate the thermal heat loss which is commonly associated with long pipe runs. If the DHC Series heater can supply all of the hot water needs for the room, you may also be able to eliminate the need to run a hot water line all the way from the main central water heater. This can result in significant savings in plumbing and material costs.

The DHC Series are extremely energy efficient, as they produce hot water on demand only as it is being called for. A sophisticated water flow sensor recognizes when hot water is turned on and when it has been turned off, so the unit will activate and deactivate automatically so it only runs when you are actually using hot water. The standby thermal heat losses associated with traditional tank type water heaters are therefore eliminated. You can expect to see a significant reduction in cost over operating a conventional water heater.

Stiebel Eltron DHC 3-1 Point of Use Tankless Water Heater Internal View Stiebel Eltron DHC 3-1 Tankless Water Heater

An exclusive scald-guard thermostat keeps the water temperature within safe limits at all times. Additionally, the DHC water heaters are equipped with a safety high-limit with manual reset. The rugged all copper design ensures many years of reliable service.

Maximum Flow Rate in Gallons Per Minute at 105F Output Temperature
Incoming
Water Temp
DHC
3-1
DHC
3-2
DHC
4-2
DHC
4-3
DHC
5-2
DHC
6-2
DHC
8-2
DHC
10-2
40F - - - 0.47 GPM 0.50 GPM 0.63 GPM 0.75 GPM 1.00 GPM
45F 0.34 GPM 0.37 GPM - 0.51 GPM 0.54 GPM 0.68 GPM 0.82 GPM 1.09 GPM
50F 0.37 GPM 0.41 GPM 0.47 GPM 0.56 GPM 0.59 GPM 0.74 GPM 0.89 GPM 1.19 GPM
55F 0.41 GPM 0.45 GPM 0.52 GPM 0.61 GPM 0.65 GPM 0.82 GPM 0.98 GPM 1.31 GPM
60F 0.45 GPM 0.50 GPM 0.57 GPM 0.68 GPM 0.73 GPM 0.91 GPM 1.09 GPM 1.45 GPM
65F 0.51 GPM 0.56 GPM 0.65 GPM 0.77 GPM 0.82 GPM 1.02 GPM 1.22 GPM 1.63 GPM
70F 0.58 GPM 0.64 GPM 0.74 GPM 0.87 GPM 0.93 GPM 1.17 GPM 1.40 GPM 1.87 GPM
75F 0.68 GPM 0.75 GPM 0.86 GPM 1.02 GPM 1.09 GPM 1.36 GPM 1.63 GPM 2.18 GPM
80F 0.82 GPM 0.90 GPM 1.03 GPM 1.22 GPM 1.31 GPM 1.63 GPM 1.96 GPM 2.61 GPM
Chart based on 240 volt input except models DHC4-3 which is based on 277 volt and DHC 3-1 which is based on 120 volt.

The Stiebel Eltron DHC Series is not recommended for whole house use. For more information on whole house models, see our Stiebel Eltron Tempra Series Whole House Tankless Water Heaters.

* Breaker size and wire gauge must meet all applicable local, state, provincial, and national electrical codes for your area - these are only guidelines that will apply to most installations. Please consult your electrician for more details.

Stiebel Eltron DHC Series Point-of-Use Tankless Water Heaters
Models & Specifications
Model Power Level Max Amps Price
DHC 3-1 3.0 KW @ 120V 25 AMPS @ 120V
US$179.00
+ Free Shipping
DHC 3-2 3.3 KW @ 240V 14 AMPS @ 240V
US$179.00
+ Free Shipping
DHC 4-2 3.8 KW @ 240V 16 AMPS @ 240V
US$179.00
+ Free Shipping
DHC 4-3 4.5 KW @ 277V 17 AMPS @ 277V
US$179.00
+ Free Shipping
DHC 5-2 4.8 KW @ 240V 20 AMPS @ 240V
US$179.00
+ Free Shipping
DHC 6-2 6.0 KW @ 240V 25 AMPS @ 240V
US$179.00
+ Free Shipping
DHC 8-2 7.2 KW @ 240V 30 AMPS @ 240V
US$179.00
+ Free Shipping
DHC 10-2 9.6 KW @ 240V 40 AMPS @ 240V
US$179.00
+ Free Shipping
Stiebel Eltron DHC Series Point-of-Use Tankless Water Heater
Models & Specifications
DHC
3-1
DHC
3-2
DHC
4-2
DHC
4-3
DHC
5-2
DHC
6-2
DHC
8-2
DHC
10-2
KW 3.0 KW @ 120V 3.3 KW @ 240V
(2.5 KW @208V)
3.8 KW @ 240V
(2.9 KW @208V)
4.5 KW @ 277V 4.8 KW @ 240V
(3.6 KW @208V)
6.0 KW @ 240V
(4.5 KW @208V)
7.2 KW @ 240V
(5.4 KW @208V)
9.6 KW @ 240V
(7.2 KW @208V)
Voltage: 110-120 volts
single phase
50 - 60 Hz
208-240 volts
single phase
50 - 60 Hz
208-240 volts
single phase
50 - 60 Hz
277 volts
single phase
50 - 60 Hz
208-240 volts
single phase
50 - 60 Hz
208-240 volts
single phase
50 - 60 Hz
208-240 volts
single phase
50 - 60 Hz
208-240 volts
single phase
50 - 60 Hz
Max. Amps: 25 AMPS @ 120V 14 AMPS @ 240V
(12 AMPS @208V)
16 AMPS @ 240V
(14 AMPS @208V)
17 AMPS @ 277V 20 AMPS @ 240V
(18 AMPS @208V)
25 AMPS @ 240V
(22 AMPS @208V)
30 AMPS @ 240V
(26 AMPS @208V)
40 AMPS @ 240V
(35 AMPS @208V)
Breakers Required:*  25 AMP @ 120V 15 AMPS @ 240V
(15 AMPS @208V)
20 AMPS @ 240V
(15 AMPS @208V)
20 AMPS @ 277V 20 AMPS @ 240V
(20 AMPS @208V)
25 AMPS @ 240V
(25 AMPS @208V)
30 AMPS @ 240V
(30 AMPS @208V)
40 AMPS @ 240V
(35 AMPS @208V)
Wiring:*  Min. #10 AWG Copper Min. #14 AWG Copper Min. #12 AWG Copper Min. #12 AWG Copper Min. #10 AWG Copper Min. #10 AWG Copper Min. #8 AWG Copper Min. #8 AWG Copper
Dimensions: 14.25 x 7.9 x 4.1" (36 x 20 x 11 cm)
Weight: 4.6 lbs
(2.1 KG)
5.3 lbs
(2.4 KG)
5.3 lbs
(2.4 KG)
4.6 lbs
(2.1 KG)
4.6 lbs
(2.1 KG)
4.6 lbs
(2.1 KG)
5.3 lbs
(2.4 KG)
5.3 lbs
(2.4 KG)
Activation Flow Rate: 0.32 GPM
(1.2 LPM)
0.32 GPM
(1.2 LPM)
0.42 GPM
(1.6 LPM)
0.42 GPM
(1.6 LPM)
0.42 GPM
(1.6 LPM)
0.47 GPM
(1.8 LPM)
0.69 GPM
(2.6 LPM)
0.79 GPM
(3.0 LPM)
Energy Efficiency: 99%+
Pipe Fittings:  1/2" NPT
Max. Water Pressure: 150 psi
Warranty: Manufacturer's 3 Year Warranty
Safety: ETL Listed (US / Canada) - Independently tested to meet U.S. and Canadian safety standards
Protection: scald guard thermostat and thermal hi-limit cut-out switch
Price

Lowest Price Guaranteed!

US$179.00
+ Free Shipping

US$179.00
+ Free Shipping

US$179.00
+ Free Shipping

US$179.00
+ Free Shipping

US$179.00
+ Free Shipping

US$179.00
+ Free Shipping

US$179.00
+ Free Shipping

US$179.00
+ Free Shipping

DHC-3-1

DHC-3-2

DHC-4-2

DHC-4-3

DHC-5-2

DHC-6-2

DHC-8-2

DHC-10-2
